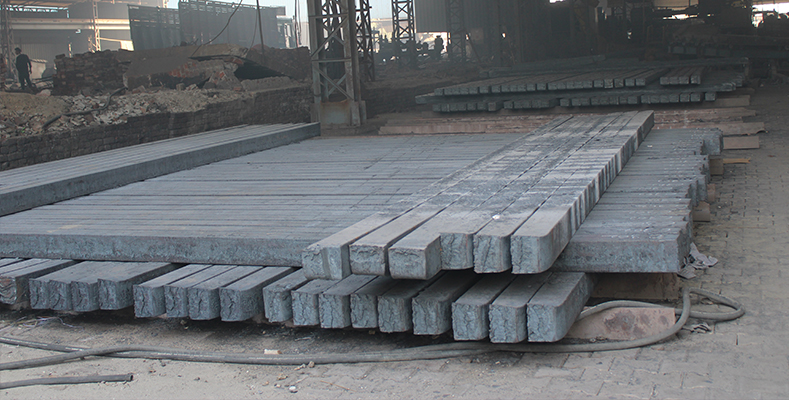

MS Billets
MS (Mild Steel) billets are versatile and robust metal blocks, prized for their strength, durability, and malleability. Crafted from high-quality mild steel, these billets serve as the foundation for a myriad of industrial applications. From construction to manufacturing, MS billets offer unparalleled reliability and performance, making them an indispensable asset in various sectors. Their uniform composition and precise dimensions ensure seamless integration into diverse production processes, guaranteeing efficiency and consistency.
- Sutiable for Ring Rolling, Forging, Re-rolling, & Up-setting.
- Hard Stamped with Heat Number, Grade & Size & Weight of the Billet
- Spot Ground or Fully Ground Surface - as per the requirement
- Smooth ends (without burrs)/ No sharp edges
| Usage/Application | Construction |
|---|---|
| Material | Mild Steel |
| Surface Treatment | Galvanized |
| Head Shape | Square |
Typical Chemical Composition:
| %C | %Si | %Mn | %P | %S | N(PPM) | CE* |
|---|---|---|---|---|---|---|
| 0.10-0.38 | 0.15-0.30 | 0.60-1.40 | 0.035 MAX | 0.035 MAX | 120 | 0.30-0.50 |
Size Range:
| Cross Section | Weight / Meter | Length |
|---|---|---|
| 130mm X 130mm | 132 Kg | 6-12 Meter (+50/-50mm) |
| 150mm X 150mm | 175 Kg | 6-12 Meter (+50/-50mm) |
| 160mm X 160mm | 196 Kg | 6-12 Meter (+50/-50mm) |
Physical Parameter:
| Sl No |
Parameters | Value |
|---|---|---|
| 1 | Dimension tolerance | ± 2 % |
| 2 | Rhombodity | 3% Max |
| 3 | Diagonal difference | ≤ 10mm |
| 4 | Corner radius | 4 mm Max |
| 5 | Straightness | Camber 5mm/meter |
| 6 | Angular Twist | Not more than 1 degree per meter and not more than 6 Degree over 12 meter length. |
| 7 | Cutting | Both ends will be Flame Cut |
| 8 | Identification | At the end of each billet cast number and size will be Stamped or hand written |
| 9 | Surface | The defects like longitudinal cracks, transverse cracks, scab and thick scale, slag patches, surface blowholes etc. will be within acceptable range. |
